EGHP175F Belt Driven Linear Stage

Khoom Paub meej

Qauv: EGHP175F

Yam khoom: Txoj siv tawv tsav linear theem

Tsav mechanism: Toothed sij hawm siv thiab rubey

Rov ua dua qhov tseeb: 0.02 hli

Maximum kab rov tav load: 10 kg

Cov yam ntxwv ntawm kev txav: Kev kub ceev thiab kev mus ntev ntev

Kev teeb tsa: Tsim nyog rau kev siv ib qho axis lossis kev koom ua ke rau hauv ntau lub axis

Daim ntaub ntawv: Automated tuav los ua ke cov cuab yeej tsim khoom thiab tso chaw



Product Description

Lub EGHP175F yog ib txoj siv txoj kab uas hla txoj kab uas hla tau tsim los rau cov tshuab ua haujlwm uas yuav tsum tau mus ntev, txav ceev, thiab rov ua haujlwm zoo ib yam. Nws txoj hlua khi hlua khi thiab rub lub cev muaj zog xa mus rau lub tsheb thauj mus los, muab cov kev daws teeb meem rau cov ntawv thov uas qhov ceev thiab ntev mus ncig yog qhov tseem ceeb tshaj qhov kev sib tw siab dua nrog lub pob ntsia hlau tsav.



Lub module muaj qhov rov ua qhov tseeb ntawm 0.02 hli thiab txhawb nqa qhov siab tshaj plaws kab rov tav ntawm 10 kg. Nws tuaj yeem siv los ua ib qho kev sib txuas ib leeg lossis ua ke nrog cov khoom siv ntxiv los tsim ntau qhov chaw axis thiab tuav cov tshuab.



Cov ntawv thov muaj xws li kev hloov khoom siv, kev sib dhos tsis siv neeg, cov khoom siv tshuaj ntsuam xyuas, cov kab ntau lawm, thiab lwm yam tshuab uas yuav tsum tau tswj cov kev sib txuas lus tawm. Ua ntej kev txiav txim, qhov yuav tsum tau muaj stroke, installation kev taw qhia, payload, kev khiav hauj lwm ceev, lub cev muaj zog interface, thiab ua hauj lwm ib puag ncig yuav tsum tau lees paub.



Peb tsim rau cov neeg siv khoom kos duab nyob rau hauv OEM / ODM, thiab lees txais kev txiav txim me me raws li ib daim ntawv rau qhov ntau thiab tsawg.

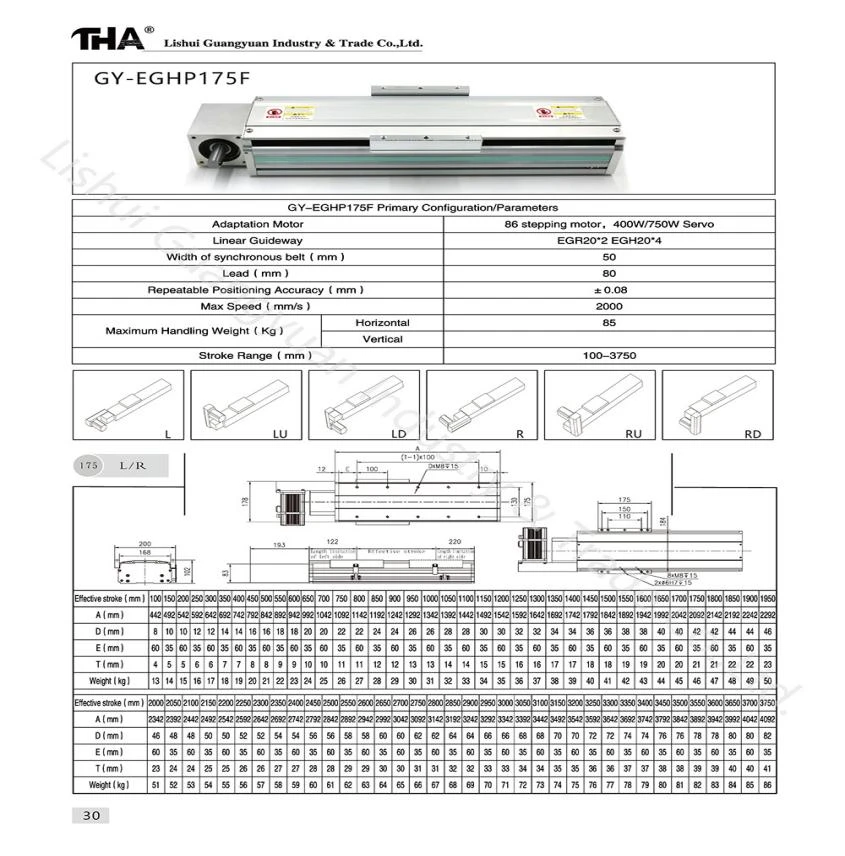

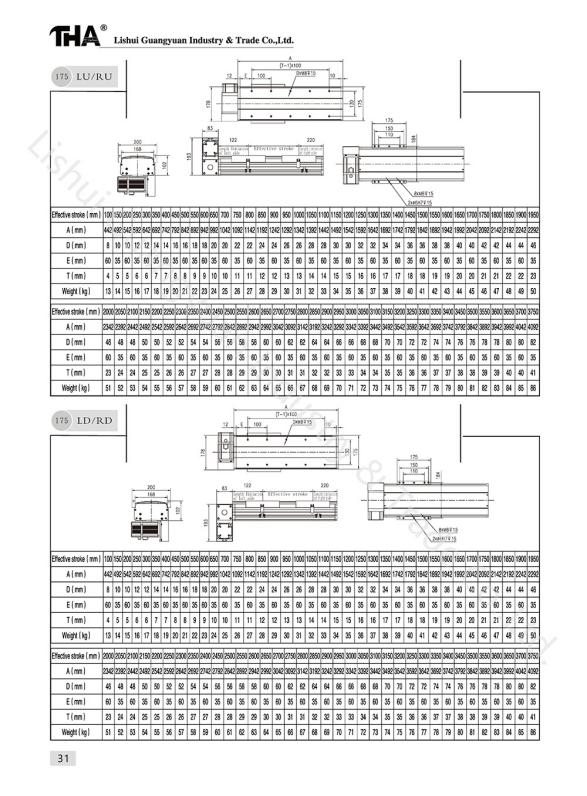

Yam khoom qauv	GY-EGHP175F
Ua haujlwm stroke:	100mm-3750mm
Linear Guideway:	EGR 20 * 2 EGH 20 * 4
Ntsia Hlau Pitch:	80 hli
Siv dav:	50 hli
Repeatable Positioning Accuracy:	+-0.08
Max nqa hnyav:	8 5 KG
Nruab Drecation:	Kab rov tav
Lub tuam txhab xwm:	Chaw tsim tshuaj paus
Tshuag:	Loj
Kev Pabcuam:	OEM, kev pabcuam customized
MOQ:	1set ib



Khoom siv

Scope ntawm kev siv:Cov kab tsheb ciav hlau muaj ntau yam thiab haum rau txhua yam siab -load automation khoom thiab DIY project, xws li router / zeb / tshuab dhos sleds, 3D tshuab luam ntawv, laser engravers, CNC tshuab, kws qhia rocker daim hlau, thiab lwm yam.

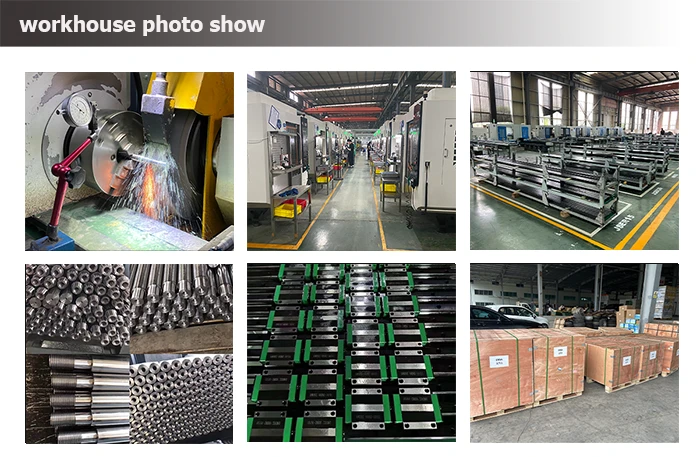

Tuam txhab Profile





Vim Li Cas Xaiv Peb











FAQ

1.Q: Koj puas yog cov chaw tsim khoom lossis cov tub luam?

A:Peb yog cov chaw tsim khoom. Zoo siab txais tos tuaj xyuas peb lub Hoobkas

2.Q: Ntev npaum li cas kev hloov kho?

A: Customization ntawm linear guideways yuav tsum txiav txim siab qhov loj thiab specifications raws li qhov yuav tsum tau, uas feem ntau yuav siv sij hawm ib ncig ntawm 1-2 lub lis piam rau ntau lawm thiab xa tom qab tso qhov kev txiav txim.

3.Q: Koj lub tuam txhab tau nyob hauv daim teb no ntev npaum li cas?

A: Peb tau tsom mus rau automation machinery qhov chaw rau kaum xyoo, thiab peb cov khoom raug muag thoob plaws ntiaj teb, xws li Europe, America, Asia, Southeast Asia, Africa thiab lwm qhov chaw.

4.Q: Yog tias koj tsis tuaj yeem pom cov khoom ntawm peb lub vev xaib, koj yuav ua li cas ntxiv?

A:Thov xa peb cov lus nug nrog cov duab khoom thiab kos duab los ntawm email lossis lwm txoj hauv kev thiab peb yuav kuaj xyuas.

5.Q. Hais txog tus nqi
A: Peb txiav txim siab tus nqi raws li cov kev xav tau tshwj xeeb thiab cov nqi kho kom haum ntawm qhov kev txiav txim, thov hu rau peb cov neeg siv khoom rau tus nqi tshwj xeeb tom qab lees paub qhov kev txiav txim.
